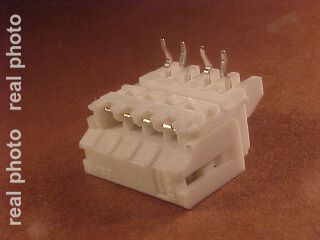

2.50mm Pitch 4 Circuits Wire Trap

  • Obserwuj produkt:
  • Manufacturer: MOLEX
  • pcs.
  • Net Price: $0.26 / pcs. $0.32 / pcs.
EU RoHS Compliant Yes
Connector Type BOARD CONNECTOR
Body Breadth 0.2680 inch
Body Depth 0.4920 inch
Body Diameter 0.5160 inch
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mohm
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1.00E9 ohm
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer Series 52012
Mating Contact Pitch (inch) 0.098
Mating Information RIBBON CABLE
MIL Conformance NO
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Min -40 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 3 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1260 inch
Terminal Pitch 2.5 mm
Terminal Type WIRE TRAP
Total Number of Contacts 4
UL Flammability Code 94V-0
Additional Feature PUSH-COVER STYLE
