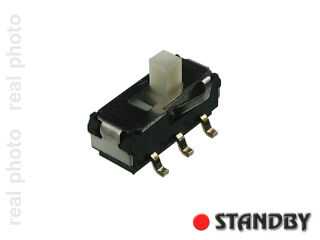

Przełącznik suwakowy SMD

  • szt.
  • Cena netto: 2,03 zł / szt. 2,50 zł / szt.



Operating force 200 ± 100 gf
Operating direction Top push, Side push Side slide
Horizontal, Vertical Horizontal
Slider Color black
Operating life 10000
Water Proof
Travel Full 2.0mm
Operating temperature range -10 ~ 60 °C
Rating DC 6V 0.3A
Dimensions 9.0mm * 3.5mm
Length 5.5mm
Timing Non shorting
Circuit 2C - 2P
Electrical performance Insulation resistance 100
Voltage proof 100
Contact resistance 100
Environmental performance Cold -25 ± 2 °C 96Hr
Dry 85 ± 2 °C 96Hr
Damp 60 ± 2 °C 96Hr
