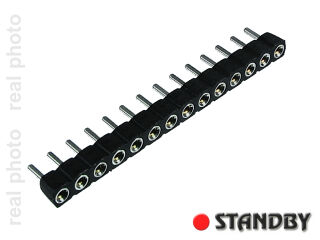

podstawka precyzyjna jednorzędowa 14pin r=2,54 wersja niska

  • szt.
  • Cena netto: 0,80 zł / szt. 0,98 zł / szt.

podstawka precyzyjna jednorzędowa 14pin r=2,54;  wersja niska

Technical specs.:

Insulator: Black glass filled polyester PCT-GF30-FR
Flammability: UL 94V-O
Sleeve: Brass CuZn36Pb3 (C36000)
Contact: Clip (4 finger): Beryllium copper (C17200)
Mating pin Ø: 0.40 to 0.52 mm
Insertion force: 3 N typ.
Withdrawal force: 1.5 N typ.(polished steel gauge Ø 0.43 mm)
Mechanical life: Min. 500 cycles
Rated current: 3 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS

PP Plating code

RoHS
Sleeve
Clip Pin
10     Gold 0,25 µm
80     Tin
83 Tin Gold 0.75 µm
87 Tin Gold flash
V3     Gold 0.75 µm



Non RoHS Sleeve Clip Pin
10     Gold 0,25 µm
13 Gold 0,25 µm Gold 0,75 µm
71 Gold flash Gold 0,25 µm
90     5 µm Sn Pb
91 5 µm Sn Pb Gold 0,25 µm
93 5 µm Sn Pb
97 5 µm Sn Pb Gold flash
99 5 µm Sn Pb 5 µm Sn Pb
