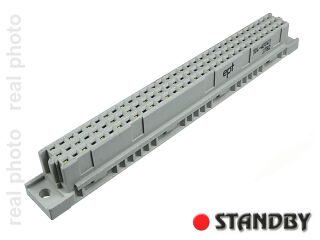

Gniazdo proste 48 pin typu C

  • szt.
  • Cena netto: 6,50 zł / szt. 7,99 zł / szt.
Contact row designation of male and female connectors a b c
Operating temperature range - 55°C to + 125°C
Max. operating current at ambient temperature (+ 20°C) 1.5 A
Test voltage, 50 Hz, 1 minute
Contact/contact (Urms) 1000 V
Contact/Ground (Urms) 1550 V
Contact resistance < 20 mΩ
Insulation resistance
> 106 MΩ
Engaging and seperating force for the complete, fully
equipped connector		 < 45 N
Seperating force per contact (test measuring device) > 0.15 N
Design female contact Double contact
Insulator material PBT glass filled, UL 94 V-0
PC fiber-glass reinforced, not combustible acc. to UL 94 V-1
PA glass filled, UL 94 V-0
