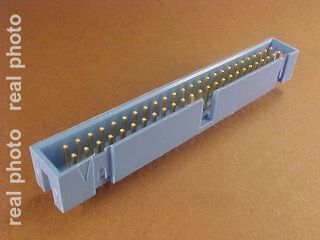

IDC 50 pin, male, THT, straight

  • Obserwuj produkt:
  • Manufacturer: T&B
  • Manufacturer's code: 609-5027
  • pcs
  • Net Price: $0.38 / pcs $0.47 / pcs
Connector Type BOARD CONNECTOR
Body Breadth 0.3650 inch
Body Depth 0.3500 inch
Body Diameter 2.8 inch
Body/Shell Style RECEPTACLE
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 609
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mounting Option 1 GUIDE SLOT
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key CENTER
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1020 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 50
UL Flammability Code 94V-0
Additional Feature LOW PROFILE, POLARIZED
