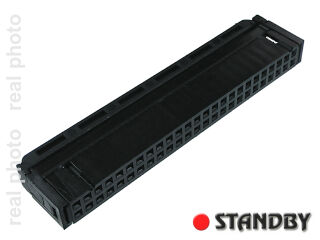

IDC 50 pin, female, for ribbon cable

  • Obserwuj produkt:
  • Manufacturer: T&B
  • Manufacturer's code: 636-5001
  • pcs
  • Net Price: $0.45 / pcs $0.55 / pcs
Connector Type BOARD CONNECTOR
Body Breadth 0.2400 inch
Body Depth 0.6610 inch
Body Diameter 2.68 inch
Body/Shell Style SOCKET
Contact Design PREASSEM CONN
Contact Finish - Mating AU ON NI
Contact Finish - Termination TIN OVER NICKEL
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 636
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
Option GENERAL PURPOSE
Plating Thickness (inch) 15u
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Type IDC
Total Number of Contacts 50
UL Flammability Code 94V-0
Wire Size-Min 28 AWG
Wire Size-Max 26 AWG
Additional Feature WITH STRAIN RELIEF
