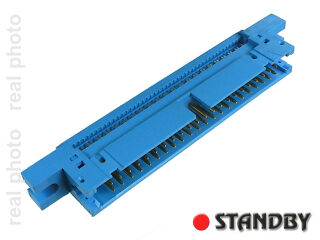

IDC 44 pin, male, for ribbon cable, to connect with latch

  • Obserwuj produkt:
  • Manufacturer: T&B
  • Manufacturer's code: 622-4416
  • pcs
  • Net Price: $1.72 / pcs $2.11 / pcs
Connector Type BOARD CONNECTOR
Board Mounting Option HOLE .125-.137
Body Breadth 0.3350 inch
Body Depth 0.5850 inch
Body Diameter 3.2 inch
Body/Shell Style RECEPTACLE
Contact Design PREASSEM CONN
Contact Finish - Mating AU ON NI
Contact Finish - Termination GOLD
Contact Gender MALE
Contact Material BERYLLIUM COPPER
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 622
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Option 1 LATCH & EJECT
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
Option GENERAL PURPOSE
Plating Thickness (inch) 30u
Polarization Key MIL TYP & CENTER
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Type IDC
Total Number of Contacts 44
UL Flammability Code 94V-0
Additional Feature POLARIZED
