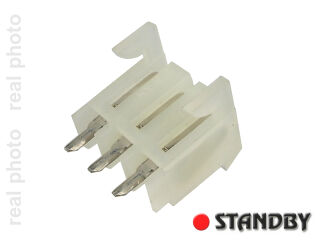

Connectors series 41815, 3 circuits

  • Obserwuj produkt:
  • Manufacturer: MOLEX
  • Manufacturer's code: 09-48-3036
  • pcs
  • Net Price: $0.21 / pcs $0.26 / pcs

3.96mm Pitch KK® PC Board Connector, Top Entry, Polyester Connector, Gold (Au) Selective, 3 Circuits



Categories Connectors, Interconnects
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series KK 41815
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.156" (3.96mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Insulation Color Natural
Insulation Height 0.449" (11.40mm)
Contact Length - Post 0.120" (3.05mm)
Operating Temperature -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Hooks
Current Rating 4.5A
Voltage Rating 600V
Applications Automotive, General Purpose, Medical, Telecommunications
Insulation Material Polyester
Contact Shape Square
Contact Material Brass
Contact Finish Thickness - Post 100.0µin (2.54µm)
