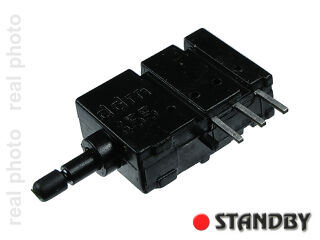

Single pole push button switch

  • pcs
  • Net Price: $0.28 / pcs $0.35 / pcs

Single pole push button switch, size 16,8x5,6x10mm

Construction

Function:                               bbm
Pining:                                   2,54 mm

Electrical datas

Switching voltage:               max. 60V
Switching current:                max. 100 mA
Contact resistance:             Insulation resistance:           >10 MOhm

Insulation materials

Housing:                              Thermoplast UL-94-V0
Contact body:                      Thermoplast UL-94-V0
Actuator:                              Thermoplast UL-94-V0

Contact materials

Fixed contacts:                    Cu Sn gal. Ni3 Au 1
Sliding contacts:                  Cu Be gal. Ni1 Au 1
Pins:                                     Cu Sn gal. Sn

Mechanical datas

Life expectancy:                   > 20.000 operations
Operating temperature:         -25°C to +70°C
Storage temperature:            -25°C to +70°C
Soldering time / conditions:   max 5 sec. +250°C
Operating force:                     3,5 N +/- 50%
