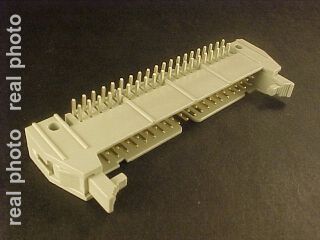

IDC 40 pin, male, THT, angled 90°, short latch

  • Obserwuj produkt:
  • Manufacturer: BERG ELECTRONICS
  • Manufacturer's code: 71922-240
  • pcs
  • Net Price: $0.40 / pcs $0.49 / pcs
Connector Type BOARD CONNECTOR
Board Mounting Option HOLE .099-.111
Body Breadth 0.3390 inch
Body Depth 0.6850 inch
Body Diameter 2.76 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating GOLD (30) OVER NICKEL/GOLD FLASH OVER PALLADIUM NICKEL
Contact Finish - Termination TIN LEAD (150) OVER NICKEL
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Insulation Resistance 1.00E10 ohm
Insulator Color GRAY
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 71922
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Option 1 LOCKING
Mounting Option 2 LATCH
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -65 Cel
Operating Temperature-Max (Cel) 125
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1140 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 40
UL Flammability Code 94V-0
Additional Feature LATCHED, LOW PROFILE, POLARIZED
