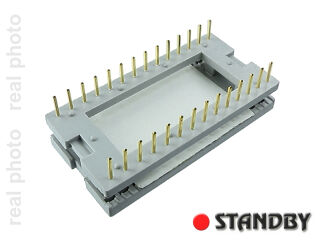

IDC 28 pin, DIP Plug

  • Obserwuj produkt:
  • Manufacturer: 3M
  • Manufacturer's code: 3728-4000
  • pcs
  • Net Price: $1.45 / pcs $1.78 / pcs




Conductor Accommodation
26 & 28 AWG Solid or Stranded

Contact Material
Copper Alloy

Contact Termination Area Plating
30 µ" [0.76 µm] Gold

Contact Underplating
100 µ" [2.54 µm] Nickel

Contact Wiping Area Plating
30 µ" [0.76 µm] Gold

Current Rating
1 Ampere

Insulation Color
Gray

Insulation Flammability Rating
UL 94V-0

Insulation Material
Glass Filled Polyester (PBT)

Insulation Resistance
>1 X 10^9 Ohms @ 500 Vdc

Interface Grid
.100" x .600"

Interface Style
DIP (Dual Inline Package)

Markings
3M Logo, Part Identification Number, and Contact Position Numbers

Non-Operating Temperature
-55 to 105 Degree Celsius

Number of Contact Rows
2

Number of Contacts
28

Pitch
.050 Inch

Separable
Yes

Solder Bump
Yes

Tail Shape
Rectangular

Termination Method
Insulation Displacement

Termination Style
Multiple Wires

Withstanding Voltage

1000 Vrms at Sea Level
