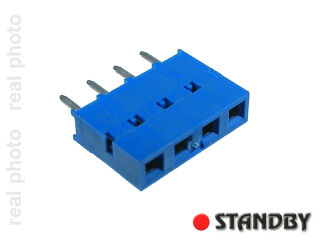

1x04 gniazdo do druku jednorzędowe proste (10szt)

  • komplet
  • Cena netto: 1,20 zł / komplet 1,48 zł / komplet

gniazda do druku jednorzędowe proste 1x4; r=2,54mm; selektywnie złocone

General
Hold Down Style
No Locating Pegs
Number of contacts (per row)
4
Number of contacts (Total)
4
Number of rows
1
Orientation
Vertical
Packaging
Tube
Mating half
Mates with 0.64 mm (0.025 in.) Square pins.
Dimensional
Thickness (Board)
1.6 mm (0.062 in.) or 2.36 mm (0.093 in.)
Footprint (Board)
2.54 mm x 2.54 mm (0.1 in. x 0.1 in.)
Electrical
Current rating
3A max. per Contact/2A max. per Contact for Full Load
Resistance (Contact)
15 milli ohms Initial, 20 milli ohms After test
Resistance (Insulation)
100000 M-ohms
Voltage rating
1000V rms
Mechanical
Insertion force
1.50N (150 gf) per Contact
Withdrawal Force
0.3N (30 gf) min. per Contact
Mounting
Solder process
Compatible with Wave Soldering Processes
Physical
Color (Housing)
Blue
Material (Contact)
Phosphor Bronze
Material (Housing)
Glass - Filled Thermoplastic Polyester
Plating (Contact area)
0.76 µm (30 µin.) Gold
Plating (Tail)
2.54 µm (100 µin.) Tin
Underplating (Contact)
1.27 µm (50 µin.) Nickel
Flammability rating
UL 94 V-0
Temperature (Range)
-65 °C to +125 °C
Approvals / Certifications
Approvals / Certifications
UL and CSA Approved
