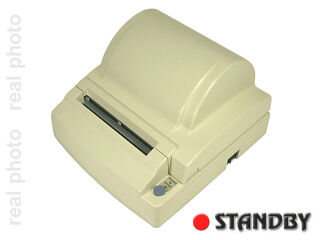

IDP-3240 Drukarka termiczna

  • szt.
  • Cena netto: 527,64 zł / szt. 649,00 zł / szt.

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.



Print method Line thermal dot print method
Print width 104 mm/832 dots
Dot density 8 dots/mm (203 dpi)
Print speed 80 mm/sec (Fastest, printing ASCII, print density level 2, applicable to
printing of 60 or fewer columns)
Number of print columns*1 Font A: 69/60 columns (12 × 24)
Font B: 92/80 columns (9 × 24)
Character size Font A: 1.25 × 3.00 mm; Font B: 0.88 × 3.00 mm
Character type Alphanumeric characters, International characters, Codepages PC437,
Katakana, PC850, PC860, PC863, PC865, PC852, PC866, PC857, and Windows
codepage
Logo registration/print
 Capable of registering user-defined characters and logos into flash memory.
NV bit map data area
 256K bytes
Types of bar code
 UPC-A/E, JAN (EAN) 13/8 columns, ITF
CODE 39, CODE 128, CODABAR, CODE 93
Line spacing
 4.23 mm (1/6 inches); selectable using commands.
Paper
 Thermal paper roll: 112 mm +0/–1 × φ 83 mm (See “2.3 Print Paper
Specifications”.)
Interfacing
 Serial (RS-232C)
Input buffer
 64K bytes (4K bytes selectable with a DIP switch)
Supply voltage
 DC 24 V ±7%
Power consumption
 Approx. 100 W
AC adapter spec
 Type 31AD-E  Rated input: AC 240 V, 50/60 Hz, 120 VA
Rated output: DC 24 V, 1.9 A
Weight
 Main body: Approx. 1.3 kg; AC adapter: Approx. 0.45 kg
Outside dimensions
 186 (W) × 201 (D) × 123 (H) mm
Operating temperature and humidity
 5 to 40°C; 35 to 85% RH (No condensation)
Storage temperature and humidity
 –20 to 60°C; 10 to 90% RH (No condensation)
Reliability
 Print head life:   Pulse resistance 1 × 108 pulses (Print ratio 12.5%)
                       Wear resistance 100 Km (At normal temperature/humidity
                       with recommended paper used)
Auto cutter life: 500,000 times of cutting (At normal temperature/humidity
                       with recommended paper used)
Safety Standard*2
 UL, C-UL, FCC Class A TUV, GS, CE marking
