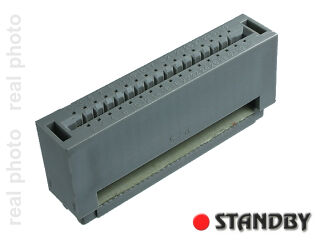

socket R=2,54mm; 34 pin; for ribbon cable

  • Obserwuj produkt:
  • Manufacturer: 3M
  • Manufacturer's code: 5934-0001JL
  • pcs
  • Net Price: $1.72 / pcs $2.11 / pcs
Connector Type CARD EDGE CONNECTOR
Contact Design PREASSEM CONN
Contact Finish - Mating GOLD (30) OVER NICKEL (100)
Contact Gender FEMALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Style BELLOWED TYPE
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
Mating Contact Pitch (inch) 0.1
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Rated Current (Signal) 1 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Pitch 2.54 mm
Terminal Type SURFACE MOUNT
Total Number of Contacts 34
UL Flammability Code 94V-0
Wire Size-Min 28 AWG
Wire Size-Max 26 AWG
