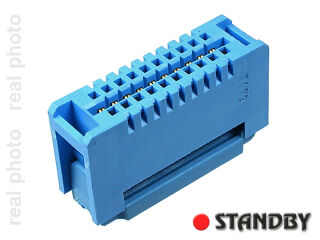

socket R=2,54mm; 20 pin; for ribbon cable

  • Obserwuj produkt:
  • Manufacturer: T&B
  • Manufacturer's code: 622-2015
  • pcs
  • Net Price: $0.64 / pcs $0.79 / pcs
Connector Type CARD EDGE CONNECTOR
Body Depth 0.7300 inch
Body Diameter 1.46 inch
Contact Design PREASSEM CONN
Contact Finish - Mating AU ON NI
Contact Gender FEMALE
Contact Material BERYLLIUM COPPER
Contact Pattern RECTANGULAR
Contact Style BELLOWED TYPE
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Diameter-Min 0.0310 inch
Insulation Resistance 1.00E9 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 622
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
Plating Thickness (inch) 30u
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Type IDC
Total Number of Contacts 20
UL Flammability Code 94V-0
Wire Size-Min 28 AWG
Wire Size-Max 26 AWG
Additional Feature POLARIZED
