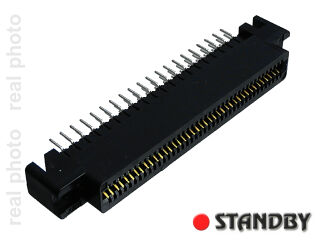

socket R=1,27mm; 80 pin; straight

  • Obserwuj produkt:
  • Manufacturer: FUJITSU
  • Manufacturer's code: FCN-224J080-G/0
  • pcs
  • Net Price: $5.56 / pcs $6.84 / pcs
Connector Type CARD EDGE CONNECTOR
Board Mounting Option BACK BOARD MOUNTING HOLE
Body Breadth 0.2830 inch
Body Depth 0.5120 inch
Body Diameter 2.61 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU ON PD-NI
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 35 mohm
Contact Style BELLOWED TYPE
Dielectric Withstanding Voltage (V) 500VAC
Durability 500 Cycles
Insertion Force-Max (N) .973
Insulation Resistance 1.00E9 ohm
Insulator Material POLYESTER
Manufacturer Series FCN-224J
Mating Contact Pitch (inch) 0.05
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 4
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 1.905
Plating Thickness (inch) 5u
Rated Current (Signal) 2 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1100 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 80
Withdrawl Force-Min (N) .2502
