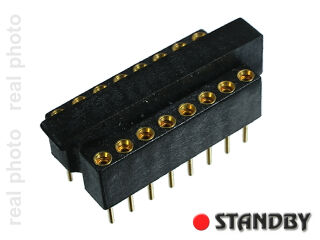

precision socket 16pin

  • Obserwuj produkt:
  • Manufacturer: FISCHER
  • Manufacturer's code: DIL 16 PEK
  • pcs
  • Net Price: $0.75 / pcs $0.92 / pcs
no. of contacts 16
contact material CuZn-alloy
contact spring gold-plated
contact sleeve gold-plated
surface contact/contact sleeve Ni+≥0.2µm Au
inner contact spring material CuBe-alloy
inner contact spring surface Ni+0,75µm Au
plugability for circuit points Ø0,4...0,56mm
  0,22x0,25mm... 0,4x0,55mm
insert depth 2.5...3.6mm
insertion / drawing force 4 lamellas contact
  1.8 N/1.4 N
shock resistance 50 g
vibration resistance max. 15 g
volume resistance 10 mΩ
contact resistance 4 mΩ
contact resistance after 1000 cycles 7 mΩ
capacity between two adjacent contacts 0,4 pF
nominal current 1.5 A
nominal voltage 150 V DC
test voltage 1000 V
insulating body material PPS, GF
temperature range -40°C... +200°C
  (260°C/10 s)
class of flammibility UL 94 V-0
specific insulation resistance >1012 Ω·m
reflow solderable yes
