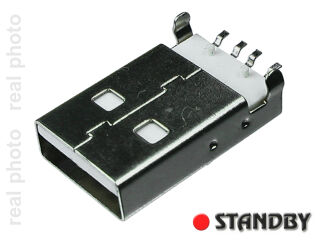

Plug USB type A angled SMD

  • Obserwuj produkt:
  • pcs
  • Net Price: $0.23 / pcs $0.28 / pcs

Plug USB type A angled SMD, ROHS

Rated current and voltage : 1A, 30V AC (r.m.s)
Dielectric Withstanding Voltage : EIA 364-20, 750V AC at sea level
Contact Resistance : ＜30mΩ
Insulation Resistance : ＞1000MΩ
Operating Temperature : -20℃~60℃ storage; 0℃~50℃ operating
4 Position shielded receptacle connector
2mm centerline and 2.5mm centerline power contacts
High durability and long cycle life
