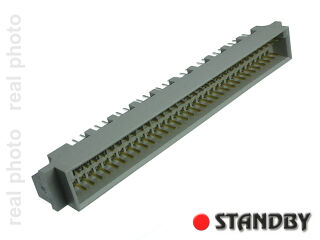

Male straight 64 pin type C
- Obserwuj produkt:
- Manufacturer: CONEC
- Manufacturer's code: 121 A 10189 X
-
- pcs
- Net Price: $1.81 / pcs $2.23 * / pcs
Type : C
Insulator : PBT GF
Flammability : UL 94 V-0
Contacts : Copper alloy
Contact plating : gold over nickel
Initial contact resistance : ≤ 20 mΩ
Initial insulation resistance : ≥ 1011 Ω
Working voltage : 250 V
Working current : + 20 °C 2 A ; + 70 °C 1 A ; + 100 °C 0.5 A
Working temperature : –55 °C to +125 °C
Insulation group : A
Test voltage V.r.m.s. : contact–ground 1550 V ; contact–contact 1000 V
Insertion and withdrawal forces max. : 90 N
Quality class 3 : 50 cycles
