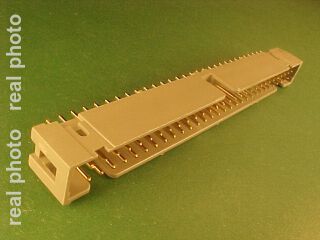

IDC 60 pin, male, THT, straight

  • Obserwuj produkt:
  • Manufacturer: 3M
  • Manufacturer's code: 2560-6002UB
  • pcs
  • Net Price: $0.50 / pcs $0.61 / pcs
Connector Type BOARD CONNECTOR
Body Breadth 0.3380 inch
Body Depth 0.3800 inch
Body Diameter 3.29 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating GOLD (30) OVER NICKEL (100)
Contact Finish - Termination Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1400VAC
DIN Conformance NO
Insulation Resistance 1.00E9 ohm
Insulator Color GRAY
Insulator Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer Series 2500
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Option 1 GUIDE SLOT
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 2 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1120 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 60
UL Flammability Code 94V-0
Additional Feature LATCHED, POLARIZED
