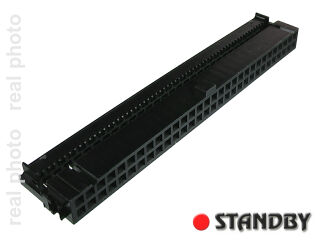

IDC 60 pin, female, for ribbon cable

  • Obserwuj produkt:
  • Manufacturer: ROBINSON NUGENT
  • Manufacturer's code: IDS-C60PK-TR
  • pcs
  • Net Price: $0.46 / pcs $0.57 / pcs
Connector Type BOARD CONNECTOR
Body Breadth 0.2350 inch
Body Depth 0.4250 inch
Body Diameter 3.18 inch
Body/Shell Style PLUG
Contact Design PREASSEM CONN
Contact Finish - Mating AU
Contact Finish - Termination GOLD
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 20 mohm
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 500VAC
Durability 500 Cycles
Insulation Resistance 5.00E9 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
Manufacturer Series IDS-PK
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Plating Thickness (inch) FLASH
Polarization Key CENTER
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Total Number of Contacts 60
