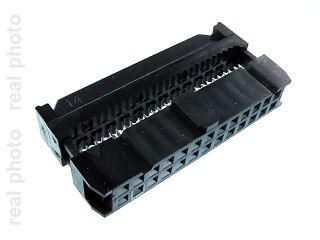

IDC 26 pin, female, for ribbon cable (10pcs)

  • Obserwuj produkt:
  • Manufacturer: CONNFLY
  • Manufacturer's code: DS1016-26MA2BB
  • set
  • Net Price: $0.71 / set $0.87 / set
Model： DS1016
Name： IDC SOCKET PITCH 2.54mm
Materials：


INSULATOR:THERMOPLASTIC(UL 94V-0).
CONTACT: COPPER ALLOY.
CONTACT PLATED: SEE ORDERING INFORMATION.
Specifications：


STORAGE TEMPERATURE:-20-70℃.
OPERATING TEMPERATURE:-40-105℃.
CONTACT RESISTANCE:20mΩ max.(initial).
INSULATION RESISTANCE:1000MΩ min.
DIELECTRIC WITHSTANDING VOLTAGE:AC 500V PER MINUTE.
