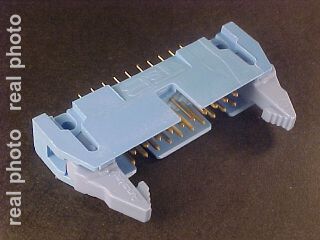

IDC 20 pin, male, THT, straight, short latch

  • Obserwuj produkt:
  • Manufacturer: T&B
  • Manufacturer's code: 609-2024E
  • pcs
  • Net Price: $0.33 / pcs $0.41 / pcs
Connector Type BOARD CONNECTOR
Board Mounting Option HOLE .099-.111
Body Breadth 0.3500 inch
Body Depth 0.7000 inch
Body Diameter 1.76 inch
Body/Shell Style RECEPTACLE
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED THERMOPLASTIC
Manufacturer Series 609
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Option 1 LATCH & EJECT
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 125
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key CTR W/GUIDE SLOTS
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1140 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 20
UL Flammability Code 94V-0
Additional Feature EJECTOR, LATCHED, POLARIZED
