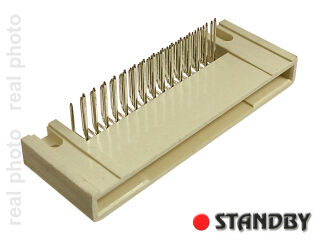

IC Card connector 60 pos.

  • pcs
  • Net Price: $2.14 / pcs $2.63 / pcs
Current rating 0.5A AC, DC/line
Temperature range -40°C to +85°C (including temperature rise in applying
electrical current)
Contact resistance Initial value/35m Ω max.
After environmental testing/
max. 20m Ω variation from initial
Withstanding voltage 500V AC/minute
Insulation resistance 1,000M Ω min. (500V DC)
Mating/unmating life 5,000 cycles
Contact Type Male Pin
Connector Type Header, Shrouded
Number of Positions 60
Number of Positions Loaded All
Pitch 0.050" (1.27mm)
Number of Rows 2
Row Spacing 0.050" (1.27mm)
Contact Mating Length 0.197" (5.00mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type -
Features -
Contact Finish Gold
Contact Finish Thickness 3.9µin (0.10µm)
Color White
