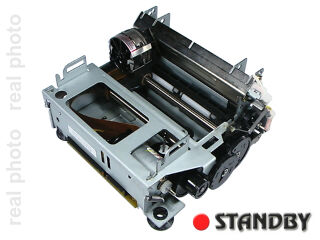

DP-617 Printer mechanism

  • Obserwuj produkt:
  • Manufacturer: CITIZEN
  • Manufacturer's code: DP-617-DFC
  • pcs
  • Net Price: $64.19 / pcs $78.95 / pcs

Complete dot matrix printer mechanism.

Ink ribbon included.



DP-617 - D   F   C
     (1)     (2)(3)(4)
(1) Type 614: DP-614
617: DP-617
(2) Ribbon D: 2 color
M: 1 color
(3) Paper feeding method F: Friction feeding
P: Sprocket feeding
(4) Character / Graphic C: Character only
G: Graphic



Specifications
Model DP-614 DP-617
Printing method Serial impact dot matrix method
Printing direction Bi-directional
Printing speed (lines/sec) Approx. 3.0 Approx. 2.4
Total number of dots (dots/lines) *1 180 (360) 200 (400)
Number of columns 40 columns
Font (W × H) *1 7 × 7 (9) matrix
Character size(W × H)mm *1 1.36 × 2.4 (3.1) 1.2 × 2.4 (3.1)
Line spacing C type: 4.23mm (1/6 inch)
G type: 2.82mm (1/9 inch)
Number of wires 9 pins
Motor Voltage: 24V +1/-2VDC
Current: Peak approx. 1A /Average 0.2A or less
Sensor Reset pulse Mechanical leaf switch
Home position Photo interrupter
Printing solenoid Voltage: 24 ± 1VDC
Printing feed solenoid Voltage: 24V +1/-2VDC
Color change solenoid Voltage: 24V +1/-2VDC
Paper feed Friction or sprocket
Paper feeding speed (lines/sec) Approx. 18 Approx. 15
Printing paper Friction feed: 76 ±0.5mm × Φ83mm
Sprocket feed: 76 to 89mm (fanfold paper)
Paper thickness Total thickness: 200µm or less
Copy Friction feed: 1 original + 1 copy
Sprocket feed: 1 original + 2 copies
Ink ribbon cartridge Two colors (Red and Black), Single color (Black)
External dimensions Two color: 137 (W) × 136 (D) × 63.5 (H)mm
Single color: 134 (W) × 136 (D) × 63.5 (H)mm
Weight Approx. 690g
Environment Operation 0 to 50°C
Storage -25 to 70°C
Reliability Mechanism MCBF 4.0 million lines
Printer head 80 million characters
