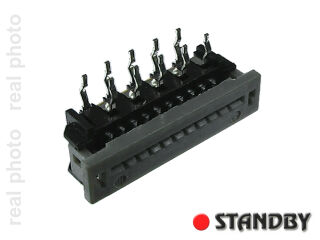

Connector FFC / FPC 1,25mm 10pin

  • Obserwuj produkt:
  • Manufacturer: FCI
  • Manufacturer's code: SLP10R-2
  • pcs
  • Net Price: $0.52 / pcs $0.64 / pcs
Mounting Type Through Hole, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 10
Pitch 0.049" (1.25mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.197" (5.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Alloy
Housing Material Polyethylene Terephthalate (PET), Glass Filled
Actuator Material Polyethylene Terephthalate (PET), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 200V
Operating Temperature -55C to 85C
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Resistance Max 30mOhm
