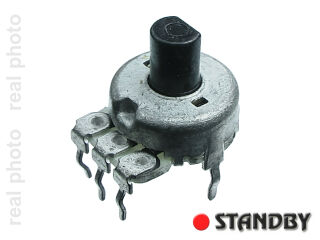

7K5 Potentiometer RV0985

  • Obserwuj produkt:
  • Manufacturer: GH ELECTRONIC
  • pcs
  • Net Price: $0.11 / pcs $0.13 / pcs

Potentiometer for PCB; horizontal; 7KΩ5; characteristics B

■(mechanical characteristics)
Items RV08 RV0985 RV10
Single-unit Single-unit

Dual-unit

 Dual-unit
Total rotational angle 200o±10o 230o±5o 270o±10o
Rotation torque 10 ~100gf.cm 5~100gf.cm
Rotation stopper strength 1kgf.cm min. 1kgf.cm min. 0.7kgf.cm
Push-pull strength 0.7kgf (screw strength) - 0.5kgf.min.
Shaft wobble - 0.7×L/10mm p-p max. -
■ (Electrical characteristics)
Total resistance 5 ~ 250 KΩ 1 ~ 250 KΩ VGSD
Total resistance tolerance ±20%
Resistance taper A,B,C
Rating power (W) 0.03W 0.05W DFS
Maximum operating voltage 50V AC 20V DC 10V AC, DC DS 50V AC
Slider noise less than 100mV
Gang error 4dB max. (-40~0dB) - 3dB max (-40~0dB)
Insulation resistance 50MΩ min at 100V DC 100MΩ min.at 100V DC
Voltage proof 1 minute at 100V AC
Sliding life 10,000 cycles
