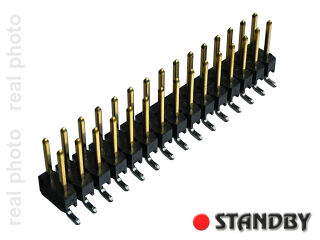

2x15 Pin header straight SMD

  • Obserwuj produkt:
  • Manufacturer: TE CONNECTIVITY
  • Manufacturer's code: 1-146130-4
  • pcs
  • Net Price: $0.34 / pcs $0.42 / pcs
Product Type Features:
  • Product Type = Connector
  • Mount Angle = Vertical
  • PCB Mount Retention = Without
  • Surface Mount Compatible = Yes
  • Board Standoff = Without
  • Mating Connector Lock = Without
  • Breakaway Header = Yes
  • PCB Mounting Orientation = Vertical
  • Post Size (mm [in]) = 0.64 [.025]
Mechanical Attachment:
  • Mounting Ears = Without
  • Panel Mount Retention = Without
Electrical Characteristics:
  • Current Rating (A) = 3
  • Insulation Resistance (MΩ) = 5,000
  • Dielectric Withstanding Voltage (V) = 750
Termination Features:
  • Solder Tail Contact Plating = Tin-Lead over Nickel
Dimensions:
  • Mating Post Length (mm [in]) = 5.84 [0.230]
Body Features:
  • Header Type = Breakaway
  • Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
  • Selectively Loaded = No
  • Mount Type = Printed Circuit Board

Contact Features:

  • Contact Plating, Mating Area, Material = Gold (30)
  • Contact Shape = Square
  • Contact Base Material = Phosphor Bronze

Housing Features:

  • Centerline (mm [in]) = 2.54 [0.100]
  • Housing Material = Thermoplastic - GF
  • Housing Color = Black
  • UL Flammability Rating = UL 94V-0

Configuration Features:

  • Number of Positions = 30
  • Number of Rows = 2

Industry Standards:

  • RoHS/ELV Compliance = Not ELV/RoHS compliant
  • Lead Free Solder Processes = Reflow solder capable to 245°C, Reflow solder capable to 260°C
  • Approved Standards = CSA LR7189, UL E28476

Conditions for Usage:

  • High Temperature Housing = Yes
  • Temperature Range (°C) = -65 – +125
  • High Temperature Compatible = Yes
