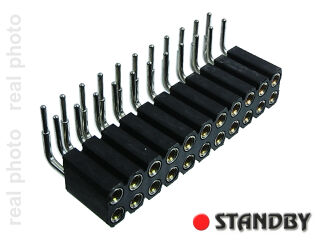

2x11 Female socket angled

  • Obserwuj produkt:
  • Manufacturer: PRECIDIP
  • Manufacturer's code: 803-93-022-20-001
  • pcs
  • Net Price: $0.87 / pcs $1.07 / pcs
Technical specs.:
Insulator: Black glass filled polyester PCT-GF30-FR
Flammability: UL 94V-O
Sleeve: Brass CuZn36Pb3 (C36000)
Contact: Clip (6 finger): Beryllium copper (C17200)
Mating pin Ø: 0.70 to 0.90 mm, 0.635 mm square
Insertion Forces: 1.2 N typ.
Withdrawal Forces: 0.6 N typ.(polished steel gauge Ø 0.76 mm)
Mechanical life: Min. 500 cycles
Rated current: 3 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS

PP Plating code

Non RoHS Sleeve Clip Pin
10     Gold 0,25 µm
13 Gold 0,25 µm Gold 0,75 µm
71 Gold flash Gold 0,25 µm
90     5 µm Sn Pb
91 5 µm Sn Pb Gold 0,25 µm
93 5 µm Sn Pb
97 5 µm Sn Pb Gold flash
99 5 µm Sn Pb 5 µm Sn Pb
