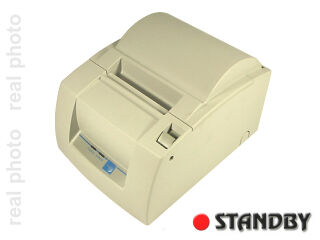

CT-S300 Drukarka termiczna

  • szt.
  • Cena netto: 405,69 zł / szt. 499,00 zł / szt.

Na drukarkę udzielana jest 30 dniowa gwarancja. Towar pochodzi z wyprzedaży zapasów magazynowych likwidowanego działu.



Specifications



Item

Specifications

Model

CT-S300-RF120

CT-S300-PF120

CT-S300-UF120

CT-S300-RF230

CT-S300-PF230

CT-S300-UF230

Print method

Line thermal dot print method

Print width

72 mm/576 dots, (48 mm/384 dots) *1

Dot density

8 × 8 dots/mm (203 dpi)

Print speed

130 mm/s (Fastest, print density level 0), 1040 dot lines/s

Number of print columns *2

( ) shows the value with

58 mm wide paper.

Font A: 48/42 (32/30) columns; 12 × 24 dots

Font B: 64/56 (42/40) columns; 9 × 17 dots

Font C: 72/63 (48/45) columns; 8 × 16 dots

Character size

Font A: 1.50 × 3.00 mm

Font B: 1.13 × 2.13 mm

Font C: 1.00 × 2.00 mm

Character type

Alphanumeric, International, PC850/852/857/858/860/863/864/ 865/866/WPC1252/Katakana/Thai code 18

User memory

256 KB (Capable of registering user-defined characters and logos)

Types of bar code

UPC-A/E, JAN (EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93

Line spacing

4.23 mm (1/6 inch)

Paper roll

Thermal paper roll: 80 mm/58 mm × φ83 mm

Paper thickness: 65-75 µm

Interfacing

Serial (RS-232C compliant), Parallel (IEEE 1284 compliant), USB

Cash drawer interface

2 cash drawers are supported

Input buffer

4k bytes/45 bytes

Supply voltage

DC 24 V ±7%

Power consumption

Approx. 70 W (in normal printing)

AC adapter

Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA

Rated output: DC 24 V, 2A

35AD-U

35AD-E

Weight

Approx. 1.2 kg

Outside dimensions

145 (W) × 195 (D) × 121 (H) mm (AC Adapter Type)

145 (W) × 195 (D) × 159 (H) mm (Built-in Power Supply Type)

Operating temperature and humidity

5 to 40°C, 35 to 85% RH (No condensation)

Storage temperature and humidity

−20 to 60°C, 10 to 90% RH (No condensation)

Reliability

Print head life: 100 km, 1 × 108 pulses (At normal temperature/

humidity with recommended paper used)

Auto cutter life: 1 million cuts (At normal temperature/ humidity

with recommended paper used)

Safety standard *3

UL, C-UL, FCC Class A

TUV, GS, CE marking



Notes: *1: Value in parentheses shows the case when a 58-mm wide paper roll is used.

          *2: The number of printable columns is selectable with a DIP switch.

          *3: Represents the safety standards acquired when CITIZEN SYSTEMS-made adapters

                (35AD series) are used.
