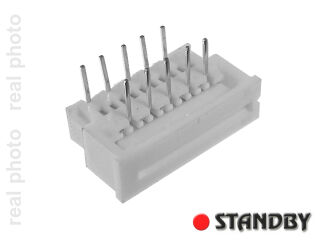

Złącze FFC/FPC 1,25mm 10pin

  • szt.
  • Cena netto: 2,25 zł / szt. 2,77 zł / szt.

General

Category FFC/FPC Connectors
Series 5597



Physical

Circuits (Loaded) 10
Color - Resin Natural
Contact Position Top
Entry Angle 90° Angle
Flammability 94V-0
Mated Height 5.00mm
Material - Metal Phosphor Bronze
Material - Plating Mating Tin-Lead
Material - Plating Termination Tin-Lead
Material - Resin Polyester
Net Weight 969.200/mg
Number of Rows 1
Orientation Right Angle
PC Tail Length 3.50mm
PCB Locator No
PCB Retention None
Packaging Type Tray
Pitch - Mating Interface 1.25mm
Plating min - Mating 3.048µm
Plating min - Termination 3.048µm
Polarized to PCB No
Stackable No
Surface Mount Compatible (SMC) No
Temperature Range - Operating -20°C to +80°C
Termination Interface: Style Through Hole
Wire/Cable Type FFC/FPC



Electrical

Current - Maximum per Contact 1A
Voltage - Maximum 200V
