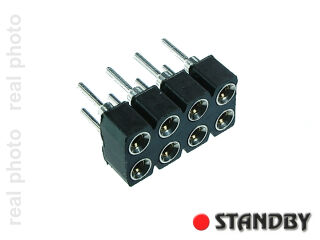

präzisions Fassung 2x04pol 2,54x2,54mm

  • Obserwuj produkt:
  • Hersteller: PRECIDIP
  • Herstellerschlüssel: 410-91-208-41-001
  • St.
  • Nettopreis: €0,10 / St. €0,12 / St.

präzisions Fassung 2x4pollig; 2,54x2,54mm

Technical specs.:

Insulator: Black glass filled polyester PCT-GF30-FR
Flammability: UL 94V-O
Sleeve: CuZn36Pb3 (C36000)
Contact: Clip (4 finger): Beryllium copper (C17200)
Mating pin Ø: 0.40 to 0.56mm
Insertion force: 2 N typ.
Withdrawal force: 1 N typ. (polished steel gauge Ø 0.43 mm)
Mechanical life: Min. 500 cycles
Rated current: 3 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS

PP Plating code

RoHS
Sleeve
Clip Pin
10     Gold 0,25 µm
80     Tin
83 Tin Gold 0.75 µm
87 Tin Gold flash
V3     Gold 0.75 µm



Non RoHS Sleeve Clip Pin
10     Gold 0,25 µm
13 Gold 0,25 µm Gold 0,75 µm
71 Gold flash Gold 0,25 µm
90     5 µm Sn Pb
91 5 µm Sn Pb Gold 0,25 µm
93 5 µm Sn Pb
97 5 µm Sn Pb Gold flash
99 5 µm Sn Pb 5 µm Sn Pb
