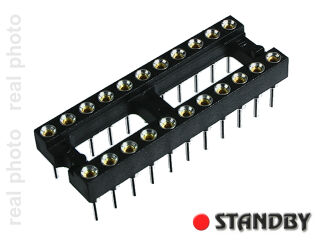

Precision Fassung 22pol 7,62

  • Obserwuj produkt:
  • Hersteller: PRECIDIP
  • Herstellerschlüssel: 110-91-322-41-001
  • St.
  • Nettopreis: €0,19 / St. €0,23 / St.

precision Fassung 22 pol; 7,62mm

Technical specs.:

Insulator: Black glass filled polyester PCT-GF30-FR
Flammability: UL 94V-O
Sleeve: Brass CuZn36Pb3 (C36000)
Contact : Clip (4 finger): Beryllium copper (C17200)
Accepted pin Ø: 0.40 to 0.56 mm
Insertion Forces: 2 N typ.
Withdrawal Forces: 1 N typ.(polished steel gauge Ø 0.43 mm)
Mechanical life: Min. 100 cycles
Rated current: 1 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS

PP Plating code

RoHS
Sleeve
Clip Pin
10     Gold 0,25 µm
80     Tin
83 Tin Gold 0.75 µm
87 Tin Gold flash
V3     Gold 0.75 µm



Non RoHS Sleeve Clip Pin
10     Gold 0,25 µm
13 Gold 0,25 µm Gold 0,75 µm
71 Gold flash Gold 0,25 µm
90     5 µm Sn Pb
91 5 µm Sn Pb Gold 0,25 µm
93 5 µm Sn Pb
97 5 µm Sn Pb Gold flash
99 5 µm Sn Pb 5 µm Sn Pb
