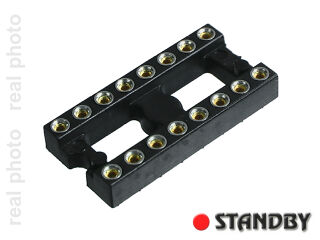

präzisions Fassung 16pol smd

  • Obserwuj produkt:
  • Hersteller: PRECIDIP
  • Herstellerschlüssel: 114-91-316-41-117161
  • St.
  • Nettopreis: €0,16 / St. €0,20 / St.

präzisions Fassung 16pol  smd

Technical specs.:

Insulator: Black glass filled polyester PCT-GF30-FR
Flammability: UL 94V-O
Sleeve: Brass CuZn36Pb3 (C36000)
Contact: Clip (4 finger): Beryllium copper (C17200)
Accepted pin Ø: 0.40 to 0.56 mm
Insertion force: 2 N typ.
Withdrawal force:1 N typ. (polished steel gauge Ø 0.43 mm)
Mechanical life: Min. 100 cycles
Rated current: 1 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS
Coplanarity SMD term.: Max. 0.10 mm
