2x02 polig Buchsenleiste (10st)

  • Obserwuj produkt:
  • Hersteller: PRECIDIP
  • Herstellerschlüssel: 803-91-004-10-003
  • komplett
  • Nettopreis: €1,21 / komplett €1,49 / komplett

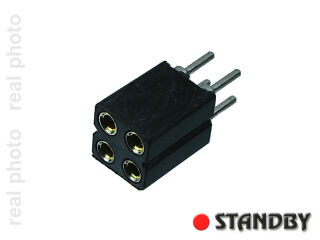

Präzisions-Buchsenleiste 2R gerade 4 polig; RM=2,54mm

Technical specs.:
Insulator: Black glass filled polyester PCT-GF30-FR
Flammability: UL 94V-O
Sleeve: Brass CuZn36Pb3 (C36000)
Contact: Clip (6 finger): Beryllium copper (C17200)
Mating pin Ø: 0.70 to 0.90 mm, 0.635 mm square
Insertion force: 1.2 N typ.
Withdrawal force: 0.6 N typ.(polished steel gauge Ø 0.76 mm)
Mechanical life: Min. 500 cycles
Rated current: 3 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS
