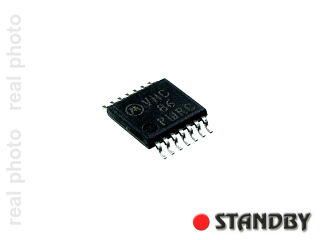

74VHC86 TSSOP14

  • Obserwuj produkt:
  • Hersteller: MOTOROLA
  • Herstellerschlüssel: MC74VHC86DT
  • St.
  • Nettopreis: €0,14 / St. €0,17 / St.

Quad 2-Input Exclusive OR Gate


•High Speed: tPD= 5.0ns (Typ) at VCC= 5V
•Low Power Dissipation: ICC= 4μA (Max) at TA= 25°C
•High Noise Immunity: VNIH= VNIL= 28% VCC
•Power Down Protection Provided on Inputs
•Balanced Propagation Delays
•Designed for 2V to 5.5V Operating Range
•Low Noise: VOLP= 0.9V (Max)
•Pin and Function Compatible with Other Standard LogicFamilies
•Latchup Performance Exceeds 300mA
•ESD Performance: HBM > 2000V; Machine Model > 200V
•Chip Complexity: 186 FETs or 46.5 Equivalent Gates
