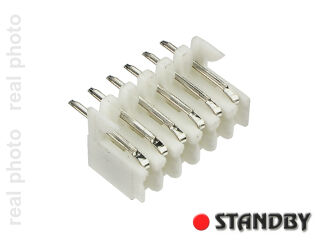

1x06 polig, 2.54mm Pitch KK® PC Board Connector

  • Obserwuj produkt:
  • Hersteller: MOLEX
  • Herstellerschlüssel: 38-00-1396
  • St.
  • Nettopreis: €0,20 / St. €0,24 / St.

2.54mm Pitch KK® PC Board Connector, Bottom Entry, with Cat Ear Terminal, 6 Circuits



Categories Connectors, Interconnects
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series KK 4455
Connector Type Receptacle, Bottom Entry
Contact Type Non-Gendered
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Insulation Color White
Insulation Height 0.311" (7.90mm)
Contact Length - Post 0.142" (3.60mm)
Operating Temperature -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Hooks
Current Rating 4A
Voltage Rating 250VAC
Applications Automotive, General Purpose, Medical, Telecommunications
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 100.0µin (2.54µm)
