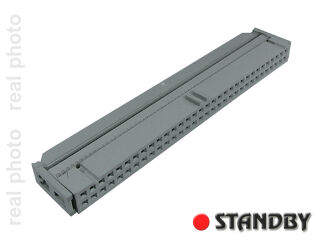

IDC 64 pol, weiblich, für Flachkabel
- Obserwuj produkt:
- Hersteller: BERG ELECTRONICS
- Herstellerschlüssel: 71600-064
-
- St.
- Nettopreis: €0,54 / St. €0,67 / St.
| Connector Type | BOARD CONNECTOR |
| Body Breadth | 0.2440 inch |
| Body Depth | 0.5110 inch |
| Body Diameter | 3.38 inch |
| Body/Shell Style | RECEPTACLE |
| Contact Design | PREASSEM CONN |
| Contact Finish - Mating | GOLD (30) OVER NICKEL (50) |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 15 mohm |
| Contact Style | SQ PIN-SKT |
| Durability | 100 Cycles |
| Insertion Force-Max (N) | 1.7792 |
| Insulation Resistance | 5.00E10 ohm |
| Insulator Color | GRAY |
| Insulator Material | THERMOPLASTIC |
| Manufacturer Series | 71600 |
| Mating Contact Pitch (inch) | 0.1 |
| Mating Contact Row Spacing (inch) | 0.1 |
| Mounting Option 1 | LOCKING |
| Mounting Type | CABLE |
| Number of Rows Loaded | 2 |
| Operating Temperature-Min | -65 Cel |
| Operating Temperature-Max (Cel) | 105 |
| Option | GENERAL PURPOSE |
| Plating Thickness (inch) | 30u |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 1 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Terminal Type | IDC |
| Total Number of Contacts | 64 |
| UL Flammability Code | 94V-0 |
| Additional Feature | LATCHED, POLARIZED |
