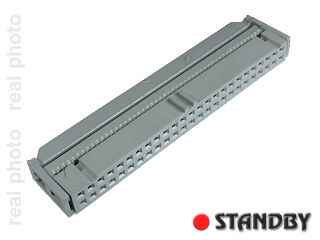

IDC 50 pol, weiblich, für Flachkabel

  • Obserwuj produkt:
  • Hersteller: BERG ELECTRONICS
  • Herstellerschlüssel: 71600-050
  • St.
  • Nettopreis: €0,40 / St. €0,49 / St.
Connector Type BOARD CONNECTOR
Body Breadth 0.2440 inch
Body Depth 0.5110 inch
Body Diameter 2.68 inch
Body/Shell Style RECEPTACLE
Contact Design PREASSEM CONN
Contact Gender FEMALE
Contact Pattern RECTANGULAR
Contact Resistance 15 mohm
Contact Style SQ PIN-SKT
Durability 100 Cycles
Insertion Force-Max (N) 1.7792
Insulation Resistance 5.00E10 ohm
Insulator Color GRAY
Insulator Material THERMOPLASTIC
Manufacturer Series 71600
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Option 1 LOCKING
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -65 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
Plating Thickness (inch) 30u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Type IDC
Total Number of Contacts 50
UL Flammability Code 94V-0
Additional Feature LATCHED, POLARIZED
