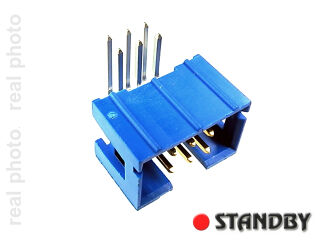

IDC 06 pol, männlich, THT, gewinkelt

  • Obserwuj produkt:
  • Hersteller: BERG ELECTRONICS
  • Herstellerschlüssel: 75867-131
  • St.
  • Nettopreis: €0,19 / St. €0,23 / St.
Connector Type BOARD CONNECTOR
Body Breadth 0.3760 inch
Body Depth 0.5480 inch
Body Diameter 0.5900 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating GOLD (30) OVER NICKEL
Contact Finish - Termination TIN LEAD (150) OVER NICKEL
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance 15 mohm
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 500VAC
Durability 100 Cycles
Insertion Force-Max (N) 4.448
Insulation Resistance 1.00E10 ohm
Insulator Color BLUE
Insulator Material GLASS FILLED POLYESTER
Manufacturer Series 75867
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -65 Cel
Operating Temperature-Max (Cel) 125
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key CTR W/GUIDE SLOTS
Rated Current (Signal) 3 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1200 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 6
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .2502
