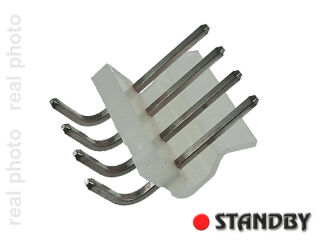

Verbindung Kabel-Platte, Buchse, Stecker, 4pol, 5,08mm, Winkel

  • Obserwuj produkt:
  • Hersteller: MOLEX
  • Herstellerschlüssel: 10-33-1042 (5282-04A
  • St.
  • Nettopreis: €0,10 / St. €0,12 / St.
Category PCB Headers
Series 5282
Application Power, Wire-to-Board
Product Name KK®

Physical



Breakaway No
Circuits (Loaded) 4
Circuits (maximum) 4
First Mate / Last Break No
Flammability 94V-2
Glow-Wire Compliant No
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Material - Plating Mating Tin
Number of Rows 1
Orientation Right Angle
PC Tail Length 3.60mm
PCB Locator No
PCB Retention None
PCB Thickness - Recommended 1.60mm
Packaging Type Bag
Pitch - Mating Interface 5.08mm
Polarized to PCB No
Shrouded Partial
Stackable No
Temperature Range - Operating -40°C to +105°C
Termination Interface: Style Through Hole



Electrical

Current - Maximum per Contact 7A
Voltage - Maximum 250V
