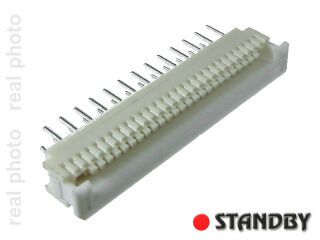

Verbindung FFC / FPC 1,00mm 26pol

  • Obserwuj produkt:
  • Hersteller: MOLEX
  • Herstellerschlüssel: 52030-2629
  • St.
  • Nettopreis: €0,72 / St. €0,88 / St.

General

Category FFC/FPC Connectors
Series 52030



Physical

Circuits (Loaded) 26
Contact Position N/A
Durability (mating cycles max) 30
Entry Angle Vertical
Mated Height 5.20mm
Material - Metal Phosphor Bronze
Material - Plating Mating Tin-Bismuth
Material - Plating Termination Tin-Bismuth
Material - Resin Nylon, Polyester
Net Weight 1021.301/mg
Number of Rows 1
Orientation Vertical
PC Tail Length 3.20mm
PCB Retention Yes
PCB Thickness - Recommended 1.60mm
Packaging Type Tray
Pitch - Mating Interface 1.00mm
Polarized to PCB No
Stackable No
Temperature Range - Operating -20°C to +80°C
Termination Interface: Style Through Hole
Wire/Cable Type FFC/FPC



Electrical

Current - Maximum per Contact 1A
Voltage - Maximum 50V
