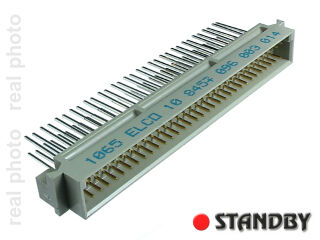

Stecker gerade 64 polig typ C

Basic Grid	.100 (2,54) X .100 (2,54) - .100 (2,54) X .200 (5,08)
Insertion Force	3.0 oz./ .83 N average per contact pair (20.23/ 90N max. for 96 contacts)
Withdrawal Force	Average per contact pair (.54 oz. / 0,15N min. per contact)
Contact Positions	2 X 32
Contact Resistance	20 milliohms max.
Current Rating	3 amperes @ 20°C max. on connectors up to 96 contacts. 1 ampere max. on connectors from 100 to 201 contacts.
Insulation Resistance	5,000 megohms min. at 500 VDC
Dielectric Withstanding Voltage	1,000 VAC rms at sea level
Operating Temperature	-65°C to +125°C
Insulator Material	Thermoplastic 94 V-0 UL Rated
Socket Contact	Material Phosphor bronze
Pin Contact Material	Copper tin
Wrap Post Dimension	.024 X .024 (0,6 mm x 0,6 mm)
Push-Out Force of Post in Insulator	3 lbs.
Cycle Life	200 Cycles
