präzisions Fassung 01pin ohne Isolator (100st)

  • Obserwuj produkt:
  • Hersteller: PRECIDIP
  • Herstellerschlüssel: 712-93-101-41-001
  • komplett
  • Nettopreis: €3,29 / komplett €4,05 / komplett

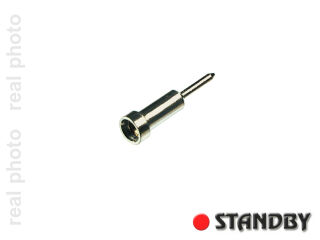

präzisions Fassung 01pin ohne Isolator

Technical specs.:

Flammability: UL 94V-O
Sleeve: CuZn36Pb3 (C36000)
Contact: Clip (4 finger): Beryllium copper (C17200)
Mating pin Ø: 0.40 to 0.56mm
Insertion force: 2 N typ.
Withdrawal force: 1 N typ.(polished steel gauge Ø 0.43 mm)
Mechanical life: Min. 500 cycles
Rated current: 3 A
Contact resistance: Max. 10 mΩ
Dielectric strength: Min. 1000 V RMS
Non RoHS
Sleeve Plating: 5 µm Sn Pb

Clip Plating: 0,75 µm Gold
