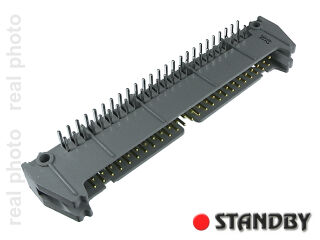

IDC 50 pol, männlich, THT, gewinkelt, zum Auswerfer angeordnet

  • Obserwuj produkt:
  • Hersteller: 3M
  • Herstellerschlüssel: 3433-5003
  • St.
  • Nettopreis: €0,46 / St. €0,56 / St.
Connector Type BOARD CONNECTOR
Body Breadth 0.3390 inch
Body Depth 0.6810 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating GOLD (30) OVER NICKEL (100)
Contact Finish - Termination TIN LEAD (200) OVER NICKEL (100)
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
Manufacturer Series 3000
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 30u
Polarization Key CTR W/GUIDE SLOTS
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1550 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 50
UL Flammability Code 94V-0
Additional Feature 3M, POLARIZED
