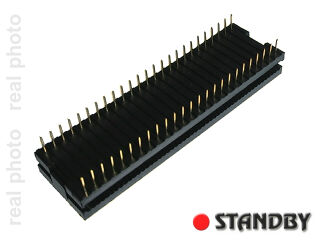

IDC 50 pol, DIP/DIL-IC-Sockel-Verbinder

  • Obserwuj produkt:
  • Hersteller: FUJITSU
  • Herstellerschlüssel: FCN-714P050-AU/0
  • St.
  • Nettopreis: €2,09 / St. €2,57 * / St.
Connector Type BOARD CONNECTOR
Body Breadth 0.7200 inch
Body Depth 0.1970 inch
Body Diameter 2.58 inch
Contact Finish - Mating AU ON NI
Contact Finish - Termination GOLD
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 500VAC
Durability 500 Cycles
Insulation Resistance 1.00E9 ohm
Insulator Material POLYESTER
Manufacturer Series FCN-714P
Mating Contact Pitch (inch) 0.05
Mating Contact Row Spacing (inch) 0.6
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Plating Thickness (inch) 5u
Rated Current (Signal) 1 A
Reference Standard UL, CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1770 inch
Terminal Type IDC
Total Number of Contacts 50
Wire Size-Min 30 AWG
Wire Size-Max 28 AWG
