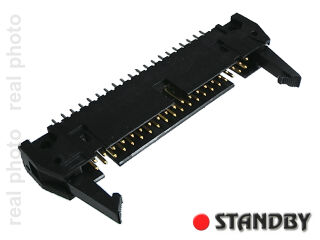

IDC 40 pol, männlich, THT, gerade, mit Auswerfer

  • Obserwuj produkt:
  • Hersteller: AMP
  • Herstellerschlüssel: 499923-9
  • St.
  • Nettopreis: €0,37 / St. €0,45 / St.
Connector Type BOARD CONNECTOR
Board Mounting Option HOLE .099-.111
Body Breadth 0.3360 inch
Body Depth 0.5490 inch
Body Diameter 2.76 inch
Body/Shell Style RECEPTACLE
Contact Finish - Termination TIN LEAD
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Manufacturer Series 499923
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mounting Option 1 LATCH & EJECT
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -65 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Plating Thickness (inch) 15u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1550 inch
Terminal Pitch 2.54 mm
Terminal Type SOLDER
Total Number of Contacts 40
UL Flammability Code 94V-0
Additional Feature AMP-LATCH, LATCHED
