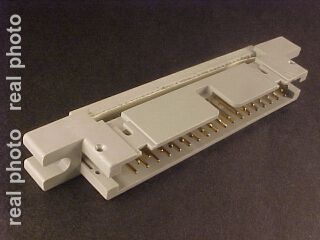

IDC 36 pol, männlich, für Flachkabel , zum Auswerfer angeordnet

  • Obserwuj produkt:
  • Hersteller: 3M
  • Herstellerschlüssel: 4636-6000
  • St.
  • Nettopreis: €0,82 / St. €1,01 / St.
Connector Type BOARD CONNECTOR
Body Breadth 0.3310 inch
Body Depth 0.5250 inch
Body Diameter 2.8 inch
Body/Shell Style PLUG
Contact Design PREASSEM CONN
Contact Finish - Mating GOLD (30) OVER NICKEL (100)
Contact Finish - Termination NOT SPECIFIED
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage (V) 1000VAC
Insulation Resistance 1.00E9 ohm
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
Manufacturer Series 4636
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mounting Type CABLE
Number of Rows Loaded 2
Operating Temperature-Min -55 Cel
Operating Temperature-Max (Cel) 105
Option GENERAL PURPOSE
Plating Thickness (inch) 30u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Type IDC
Total Number of Contacts 36
UL Flammability Code 94V-0
Wire Size-Min 28 AWG
Wire Size-Max 26 AWG
