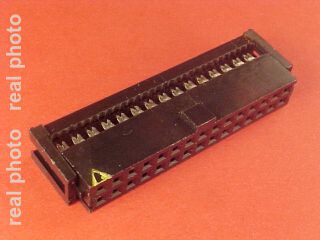

IDC 30 pol, weiblich, für Flachkabel

  • Obserwuj produkt:
  • Hersteller: MOLEX
  • Herstellerschlüssel: 39-52-1304
  • St.
  • Nettopreis: €0,49 / St. €0,60 / St.

General

Category Ribbon Cable / Wire Trap Connectors
Series 5320
Component Type Housing
Product Name QF-50™

Physical

Circuits (Loaded) 30
Circuits (maximum) 30
Durability (mating cycles max) 500
Entry Angle 90° Angle
Flammability 94V-0
Lock to Mating Part Yes
Number of Rows 2
Pitch - Mating Interface 1.27mm
Pitch - Termination Interface 2.54mm
Polarized to Mating Part Yes
Temperature Range - Operating -40°C to +105°C
Wire Insulation Diameter 1.14mm max.
Wire Size AWG 26, 28
Wire/Cable Type Ribbon Cable

Electrical

Current - Maximum per Contact 1.0A
Voltage - Maximum 500V AC

Material Info

Old Part Number 5320-30AT2
