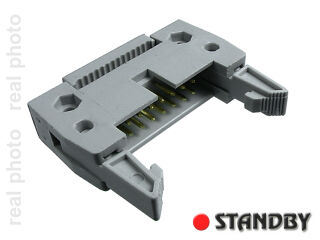

IDC 14 pol, männlich, für Flachkabel , mit Auswerfer

  • Obserwuj produkt:
  • Hersteller: CONNFLY
  • Herstellerschlüssel: DS1012-14LNN0A8
  • St.
  • Nettopreis: €0,54 / St. €0,67 / St.
Model： DS1012
Name： IDC SHROUDED HEADER MATES 1.27mm PITCH CABLE
Materials：

INSULATOR:THERMOPLASTIC(UL 94V-0).
CONTACT: COPPER ALLOY.
CONTACT PLATED: SEE ORDERING INFORMATION
Specifications：

STORAGE TEMPERATURE:-20-70℃.
OPERATING TEMPERATURE:-40-105℃.
CONTACT RESISTANCE:20mΩ max.(initial).
INSULATION RESISTANCE:1000MΩ min.
DIELECTRIC WITHSTANDING VOLTAGE:AC 500V PER MINUTE.
